Home > E-Catalog > Parting,Grooving > TGE Series > Toolholders

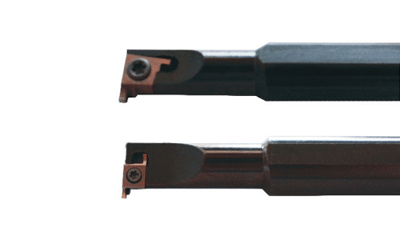

> SIGER/L
Parting,Grooving
Main Application
Related Insert Related Tool
Product No.
Designation
Dmin
T
L1
D
F
h
L
Wrench
Screw
Hand
Insert type
T2407001 SIGER0808A-EH 8.0 1.5 20.0 8.0 4.8 7.2 100.0 T6 L60M225 R
T2407003 SIGER0808A-WH 8.0 1.5 20.0 8.0 4.8 7.2 100.0 T6 L60M225 R
T2407004 SIGER1010B-EH 10.0 2.2 25.0 10.0 6.2 9.0 125.0 T8 L60M256 R
T2407006 SIGER1010B-WH 10.0 2.2 25.0 10.0 6.2 9.0 125.0 T8 L60M256 R
T2407007 SIGER1210B-EH 12.0 2.2 30.0 10.0 7.0 9.0 125.0 T8 L60M256 R
T2407009 SIGER1412C-EH 14.0 2.5 33.0 12.0 8.0 11.4 150.0 T8 L60M256 R
T2407011 SIGER1612C-EH 16.0 2.5 20.0 12.0 8.5 11.4 150.0 T8 L60M256 R
T2407013 SIGER1616C-EH 16.0 2.5 36.0 16.0 9.0 15.0 160.0 T8 L60M256 R
T2407015 SIGER2020D-EH 20.0 4.5 40.0 20.0 12.1 19.0 180.0 T10 L60M38 R
T2407017 SIGER2525D-EH 25.0 4.2 45.0 25.0 12.3 24.0 200.0 T10 L60M38 R
T2407019 SIGER2525E-EH 25.0 6.5 45.0 25.0 15.6 24.0 200.0 T15 L60M485 R
T2407021 SIGER3232E-EH 32.0 6.5 55.0 32.0 19.0 30.4 220.0 T15 L60M485 R
T2407023 SIGER4032E-EH 40.0 6.5 45.0 32.0 23.0 30.4 250.0 T15 L60M485 R
T2407025 SIGEL0808A-EH 8.0 1.5 20.0 8.0 4.8 7.2 100.0 T6 L60M225 L
T2407027 SIGEL0808A-WH 8.0 1.5 20.0 8.0 4.8 7.2 100.0 T6 L60M225 L
T2407028 SIGEL1010B-EH 10.0 2.2 25.0 10.0 6.2 9.0 125.0 T8 L60M256 L
T2407030 SIGEL1010B-WH 10.0 2.2 25.0 10.0 6.2 9.0 125.0 T8 L60M256 L
T2407031 SIGEL1210B-EH 12.0 2.2 30.0 10.0 7.0 9.0 125.0 T8 L60M256 L
T2407033 SIGEL1412C-EH 14.0 2.5 33.0 12.0 8.0 11.4 150.0 T8 L60M256 L
T2407035 SIGEL1612C-EH 16.0 2.5 20.0 12.0 8.5 11.4 150.0 T8 L60M256 L
T2407037 SIGEL1616C-EH 16.0 2.5 36.0 16.0 9.0 15.0 160.0 T8 L60M256 L
T2407039 SIGEL2020D-EH 20.0 4.5 40.0 20.0 12.1 19.0 180.0 T10 L60M38 L
T2407041 SIGEL2525D-EH 25.0 4.2 45.0 25.0 12.3 24.0 200.0 T10 L60M38 L
T2407043 SIGEL2525E-EH 25.0 6.5 45.0 25.0 15.6 24.0 200.0 T15 L60M485 L
T2407045 SIGEL3232E-EH 32.0 6.5 55.0 32.0 19.0 30.4 220.0 T15 L60M485 L
T2407047 SIGEL4032E-EH 40.0 6.5 45.0 32.0 23.0 30.4 250.0 T15 L60M485 L
