Home > E-Catalog > Parting,Grooving > MP Series > Toolholders > MPEHR*L
> MPEHL2525-3T09
Parting,Grooving
Main Application
Related Insert Related Tool

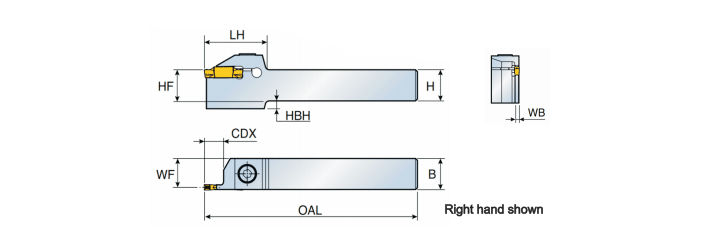

Right hand (R) shown.
Product No.
Designation
W
H(HF)
B
OAL
LH
WF
WB
CDX
Screw
Wrench
Hand
T2421058
MPEHL2525-3T09
3.0
25.0
25.0
150.0
30.0
23.8
2.4
9.0
MWM0505
ML05
L
