Home > E-Catalog > Parting,Grooving > MP Series > Toolholders

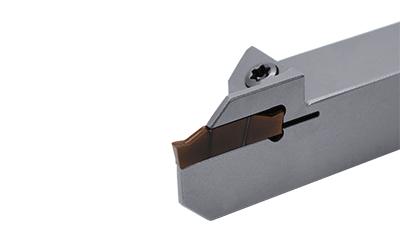

> MPEHR/L-SW

Parting,Grooving
Main Application

Related Insert Related Tool

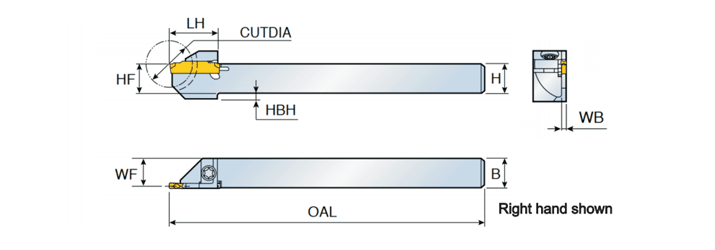

Product No.

Designation

H(HF)

OAL

Screw

Wrench

Hand

CUTDIA

Insert type

T2421093 MPEHR10-20-2SW 2.0 10.0 10.0 125.0 19.0 9.1 1.8 MWS1010 ML100 R 20.0 MPCN200C02-TX5020

T2421094 MPEHR12-24-2SW 2.0 12.0 12.0 125.0 19.0 11.1 1.8 MWS1010 ML100 R 24.0 MPCN200C02-TX5020

T2421095 MPEHR14-24-2SW 2.0 14.0 14.0 125.0 19.0 13.1 1.8 MWS1010 ML100 R 24.0 MPCN200C02-TX5020

T2421096 MPEHR16-32-2SW 2.0 16.0 16.0 125.0 24.0 15.1 1.8 MWS1010 ML100 R 32.0 MPCN200C02-TX5020

T2421097 MPEHR12-24-3SW 3.0 12.0 12.0 125.0 19.0 10.8 2.4 MWS1010 ML100 R 24.0 MPCN300C02-TX5020

T2421098 MPEHR16-32-3SW 3.0 16.0 16.0 125.0 24.0 14.8 2.4 MWS1010 ML100 R 32.0 MPCN300C02-TX5020

T2421099 MPEHR16-38-3SW 3.0 16.0 16.0 125.0 27.0 14.8 2.4 MWS1010 ML100 R 38.0 MPCN300C02-TX5020

T2421100 MPEHR20-45-3SW 3.0 20.0 20.0 125.0 30.5 18.8 2.4 MWS1010 ML100 R 45.0 MPCN300C02-TX5020

T2421101 MPEHL10-20-2SW 2.0 10.0 10.0 125.0 19.0 9.1 1.8 MWS1010 ML100 L 20.0 MPCN200C02-TX5020

T2421102 MPEHL12-24-2SW 2.0 12.0 12.0 125.0 19.0 11.1 1.8 MWS1010 ML100 L 24.0 MPCN200C02-TX5020

T2421103 MPEHL14-24-2SW 2.0 14.0 14.0 125.0 19.0 13.1 1.8 MWS1010 ML100 L 24.0 MPCN200C02-TX5020

T2421104 MPEHL16-32-2SW 2.0 16.0 16.0 125.0 24.0 15.1 1.8 MWS1010 ML100 L 32.0 MPCN200C02-TX5020

T2421105 MPEHL12-24-3SW 3.0 12.0 12.0 125.0 19.0 10.8 2.4 MWS1010 ML100 L 24.0 MPCN300C02-TX5020

T2421106 MPEHL16-32-3SW 3.0 16.0 16.0 125.0 24.0 14.8 2.4 MWS1010 ML100 L 32.0 MPCN300C02-TX5020

T2421107 MPEHL16-38-3SW 3.0 16.0 16.0 125.0 27.0 14.8 2.4 MWS1010 ML100 L 38.0 MPCN300C02-TX5020

T2421108 MPEHL20-45-3SW 3.0 20.0 20.0 125.0 30.5 18.8 2.4 MWS1010 ML100 L 45.0 MPCN300C02-TX5020
