Home > E-Catalog > Parting,Grooving > MP Series > Toolholders > MPEHR*L-SW
> MPEHL20-45-3SW
Parting,Grooving
Main Application
Related Insert Related Tool

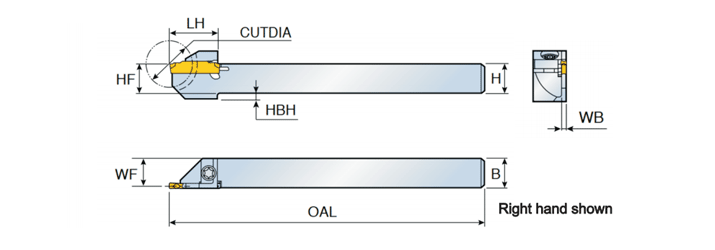

Right hand (R) shown.
Product No.
Designation
W
H(HF)
B
OAL
LH
WF
WB
Screw
Wrench
Hand
CUTDIA
T2421108
MPEHL20-45-3SW
3.0
20.0
20.0
125.0
30.5
18.8
2.4
MWS1010
ML100
L
45.0
